Art. TR084664

HighQuality_ORO
€ 75.15

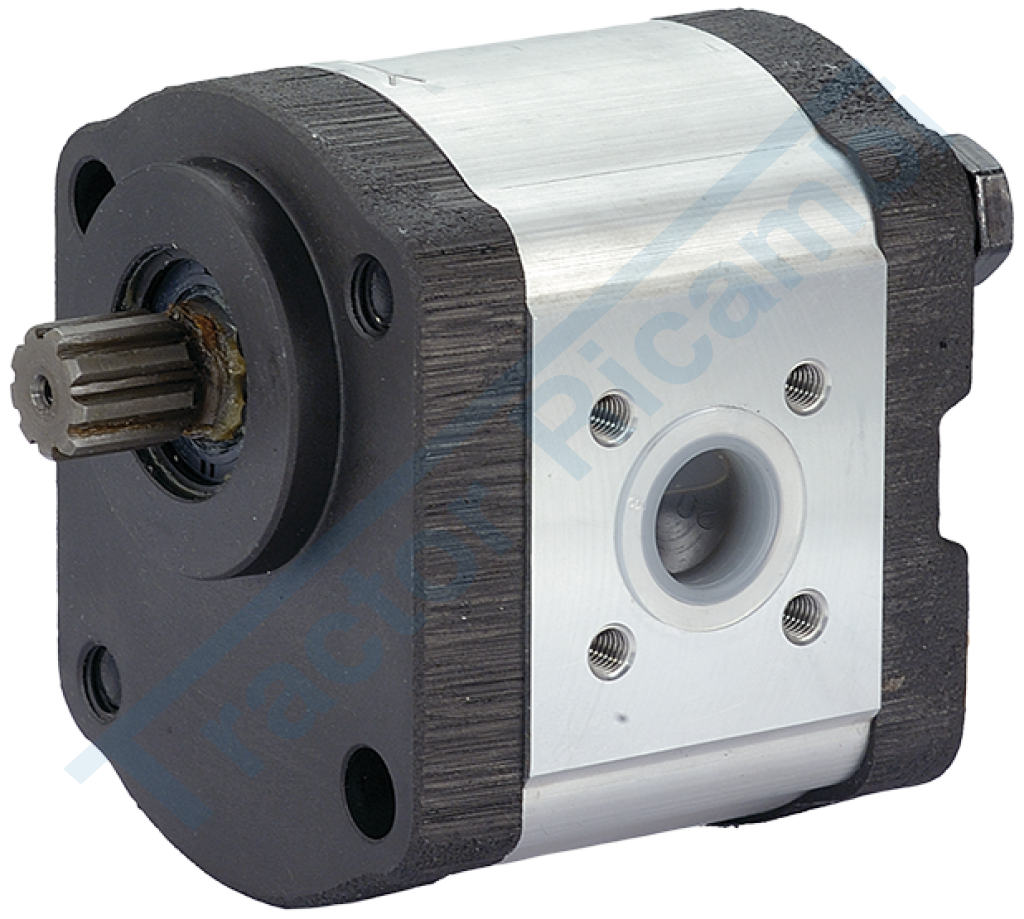

Gear pump GROUP 2

Displacement 8 cm³
Shaft 17x14 - Z.9
Rotation Left

Gear pump GROUP 2
Gear pump GROUP 2

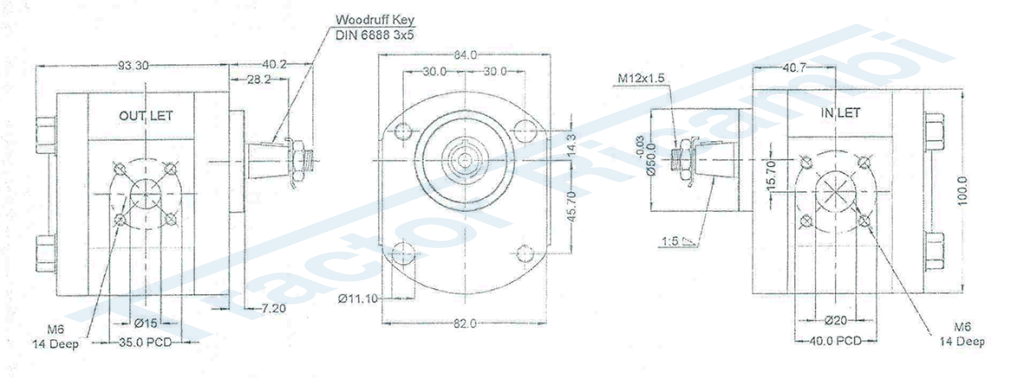

Data

Maximum pressure 250 Bar
Centering diameter 50 mm
Distance from the hole center 40.7 mm
Length 93.3 mm
Thread of the suction flange M6
Center distance of the suction flange 40 mm
Thread of the delivery flange M6
Center distance of the delivery flange 35 mm
Group 2
Displacement 8 cm³
Shaft 17x14 - Z.9
Rotation Left
net weight 1.94 kg
link applicazioni
