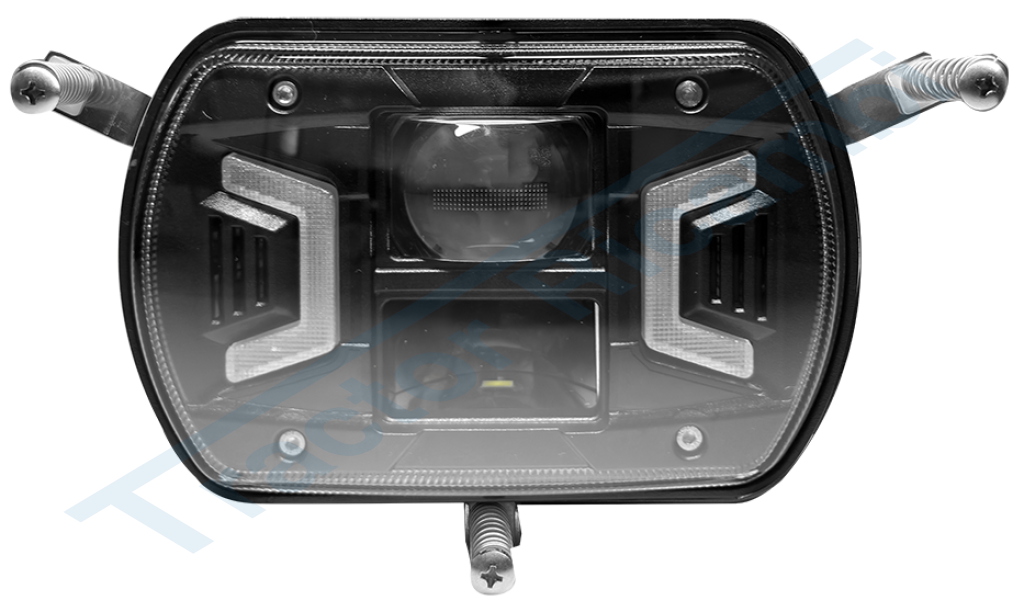

Front LED headlight kit for CNH – ANTONIO CARRARO

2-year warranty

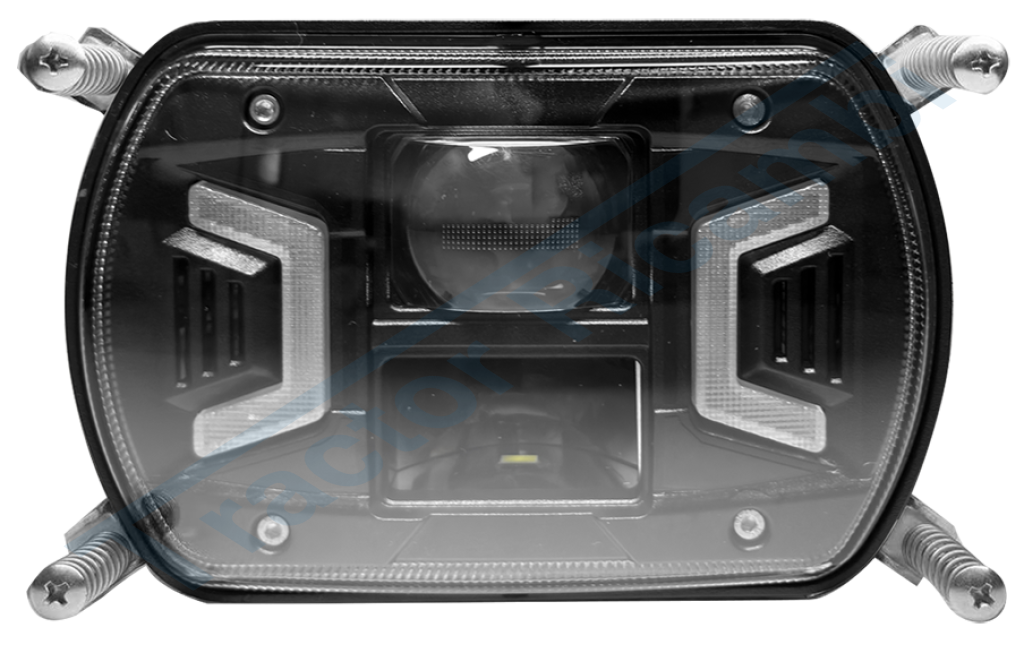

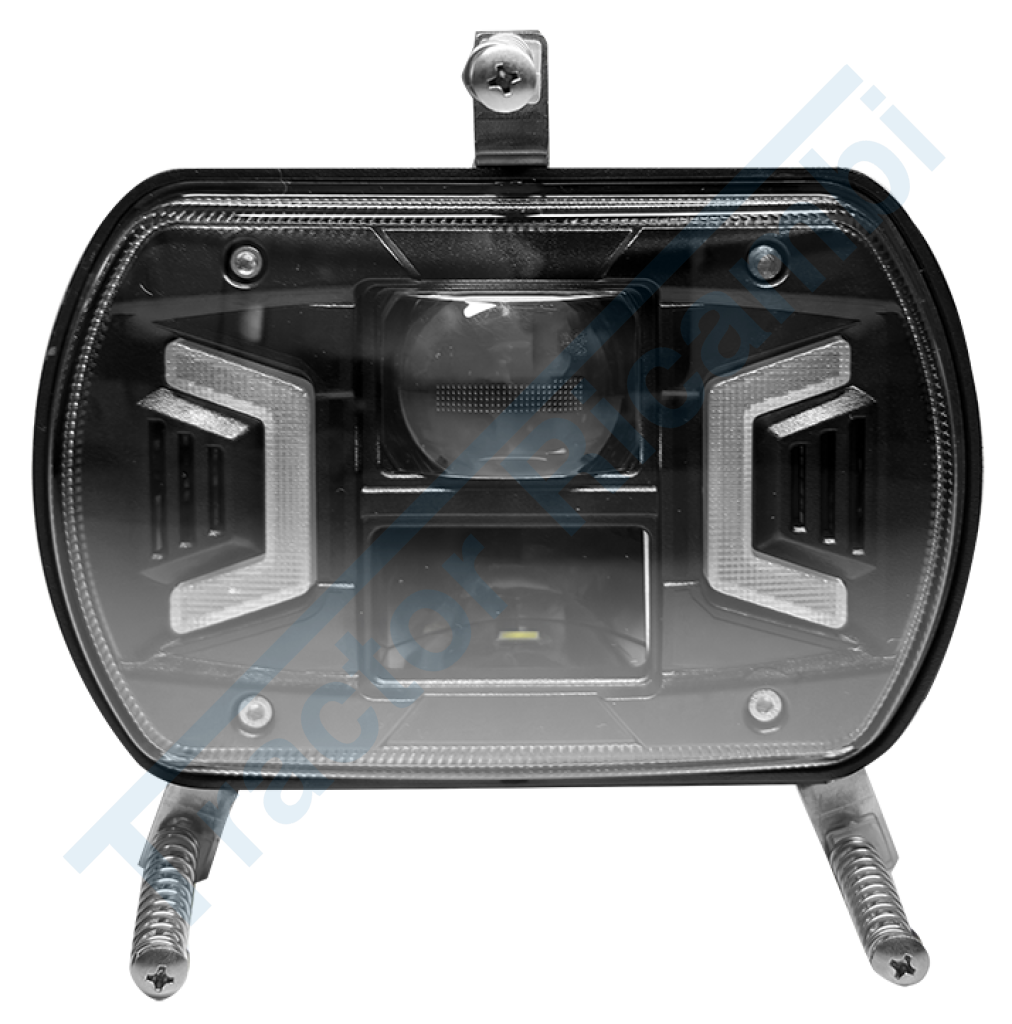

Supplied with brackets #A, #B, #C and #D (For further information, please refer to the documents below)
No pre-assembled brackets

Approved for road use with right-hand drive (RHT)
High beam & low beam = 40 Watt
Low beam = 20 Watt
Parking light = 6 Watt
Voltage: DC 10-30V
Dimensions: 155 x 102 x 82.5 mm
Effective lumens:

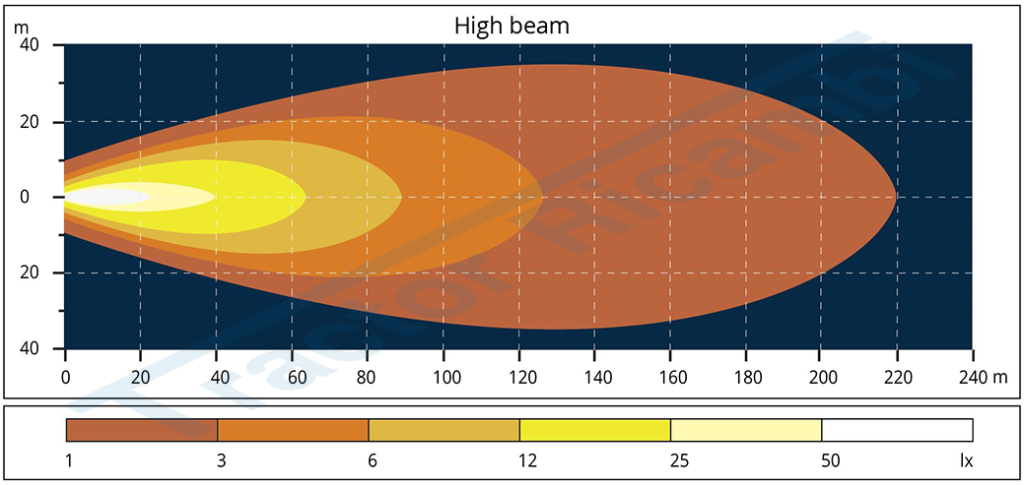

  - High beam & low beam: 4500 lm / 3500 lm

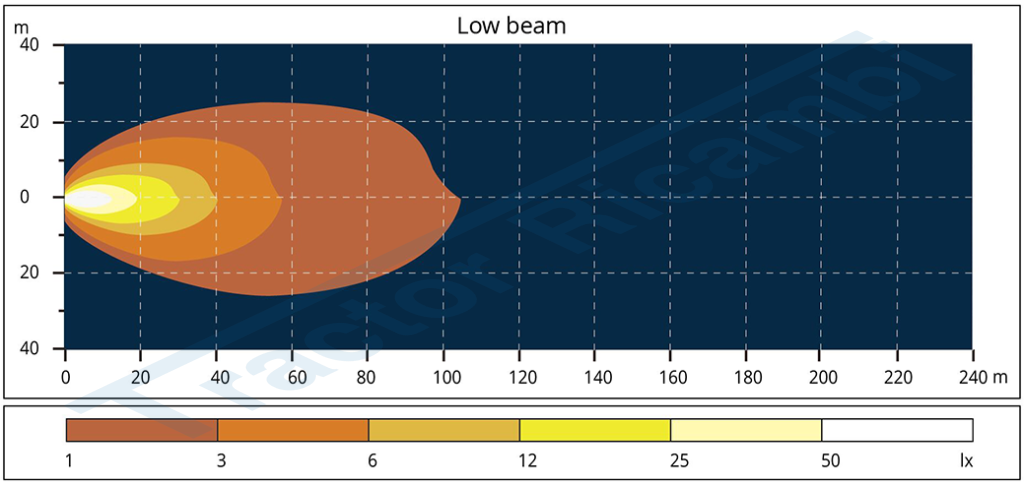

  - Low beam: 2000 lm / 1400 lm
EMC: CISPR 25 Class 3
Waterproof rating: IP69K

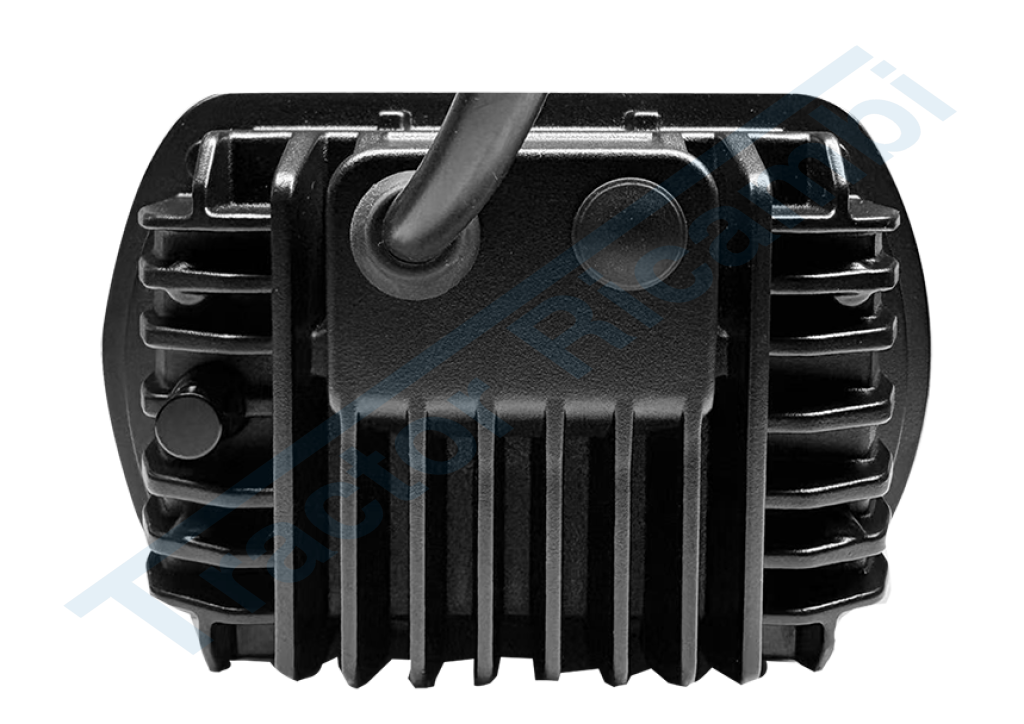

Body: Die-cast aluminium (black)
Colour temperature: 6000K
Operating temperature: -40℃ - +80℃
Complies with the following approvals: ECE-R149 (ECE-R112), ECE-R148 (ECE-R7) and ECE-R10, CE, UKCA, RoHS, REACH.
Supplied with H4 Plug & Play connector
