Art. TR037221
€ 107.83

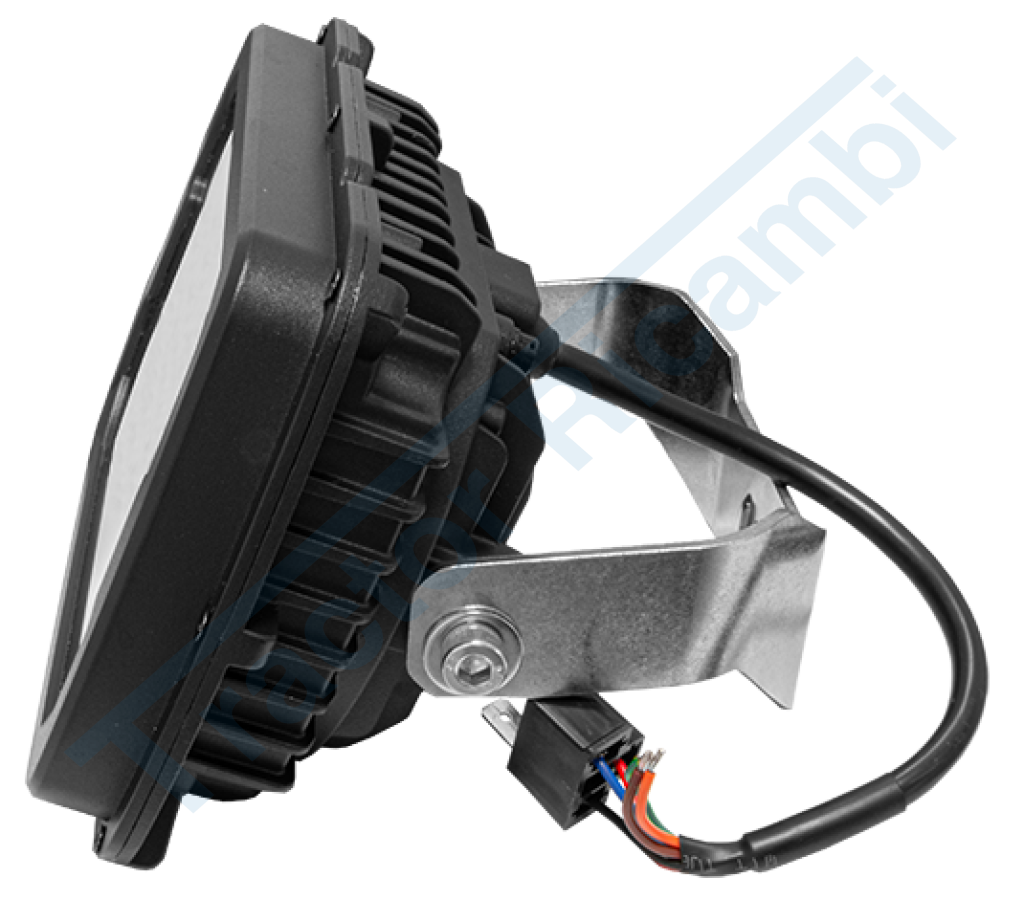

LED headlight with heated lens
Data
net weight3.2 kg
Description: WITH HEATED LENS 200X142mm LED headlight, RHT. Low beam, high beam, parking light, parking light. …
WITH HEATED LENS
200X142mm LED headlight, RHT.
Low beam, high beam, parking light, parking light.
Dynamic direction indicator.
6000K, DC10-30V, EMC.
Black frame, swivel bracket.
18cm cable with H4 connector.
Supplied with H4 Plug & Play connector.
Supplied with hinge bracket.
200X142mm LED headlight, RHT.
Low beam, high beam, parking light, parking light.
Dynamic direction indicator.
6000K, DC10-30V, EMC.
Black frame, swivel bracket.
18cm cable with H4 connector.
Supplied with H4 Plug & Play connector.
Supplied with hinge bracket.
Characteristics: Approved for right-hand drive (RHT) road use. High and low beam= 45 Watts. Low beam= 23 Watts. …
Approved for right-hand drive (RHT) road use.
High and low beam= 45 Watts.
Low beam= 23 Watts.
Parking light= 5 Watts.
Dynamic direction indicator= 5 Watts.
Volts: 12-24V / 10-30V.
Dimensions: 205 x 165 x 84.5 mm / 200 x 142 x 96 mm.
Effective lumens:
- High and low beam: 5850 lm / 3800 lm.
- Low beam: 3000 lm / 1650 lm.
EMC: CISPR 25 Class 3.
Waterproof: IP69K.
Housing: Die-cast aluminum (black).
Color temperature: 6000K / Amber.
Operating temperature: -40℃ - +80℃.
Complies with the following approvals.
ECE-R149 (ECE-R112), ECE-R148 (ECE-R7) and ECE-R10, CE, UKCA, REACH, DOT.
Application: Snowblower, telescopic handler
- With hinged mount, converted into a combination light
- Ideal for construction machinery
- With lens heating function, it is suitable for snowblowers
- With sequential indicator
USE: FOR UNIVERSAL USE, TRACTOR, EARTH MOVING
INFORMATION NOTE:
Feature - Lens heating
- The lens heating and lighting functions are controlled separately. A lens heating function wire is used to control the lens heating function.
When this wire is connected, the heating function is activated.
This design allows the user to decide whether to activate the lens heating function or not.
It helps to avoid unnecessary energy consumption during the summer season.
It allows the user to preheat the lens in cold environments without turning on the light.
It prevents the light from aging quickly due to excessive use of the heating function.
- How does the lens heating work?
There are built-in sensors to monitor the temperature of the lens.
When the lens heating function is activated, the system heats the lens according to its temperature:
When the lens temperature is lower than 40℃, the lens heating will work until the lens temperature reaches 70℃. At this point, the system stops heating and enters standby mode.
When the lens temperature drops below 40℃, the lens heating is reactivated.
