Art. TR095139

HighQuality_ORO
€ 96.50
-
+
Spare Parts

Gear pump GROUP 2

Taper 1:8
Swept volume 16.2 cc
Rotation Left

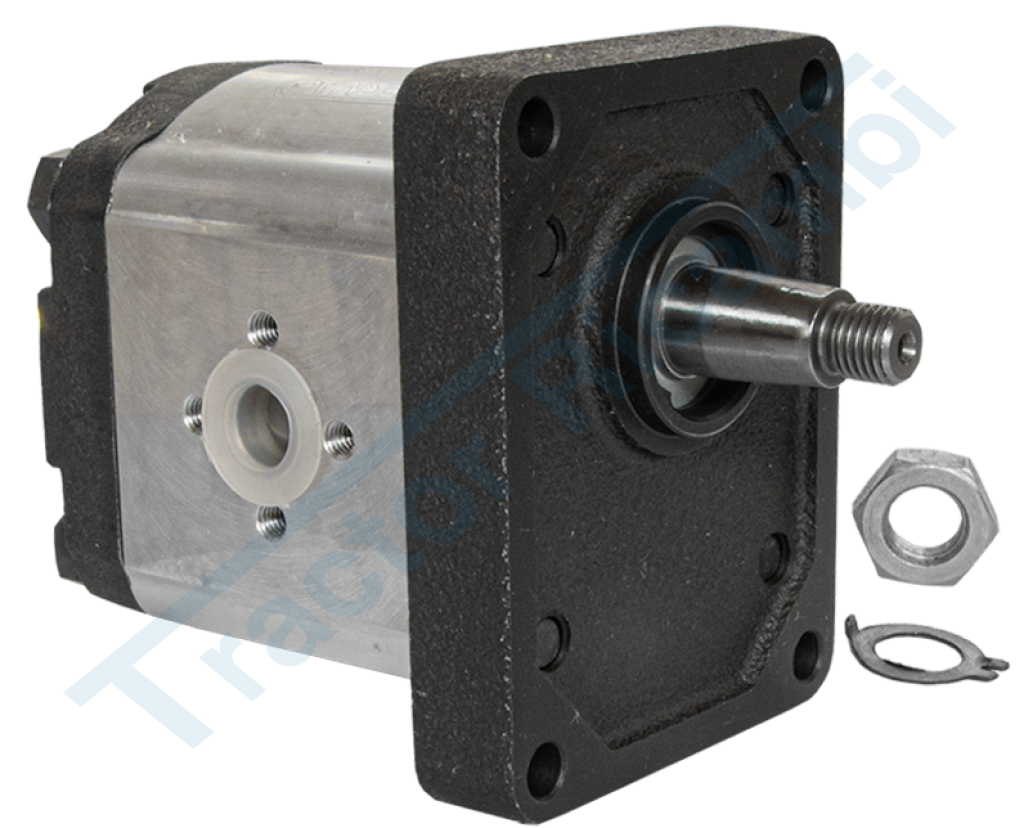

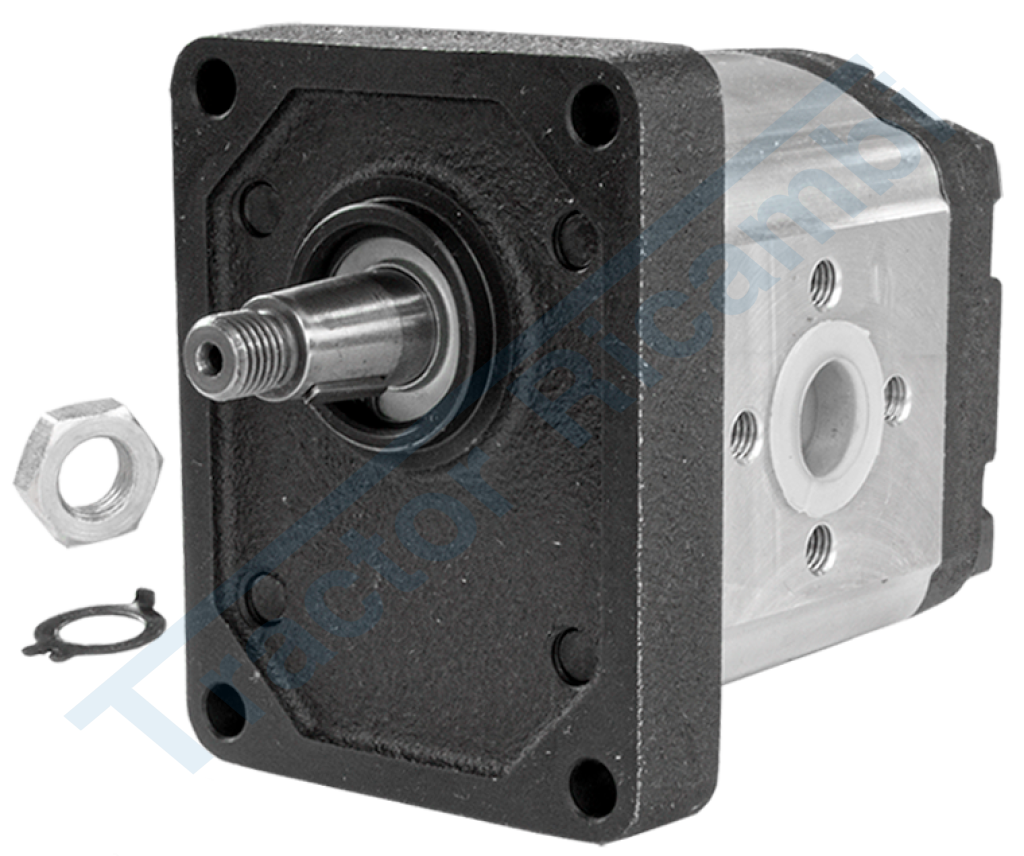

Gear pump GROUP 2
Gear pump GROUP 2

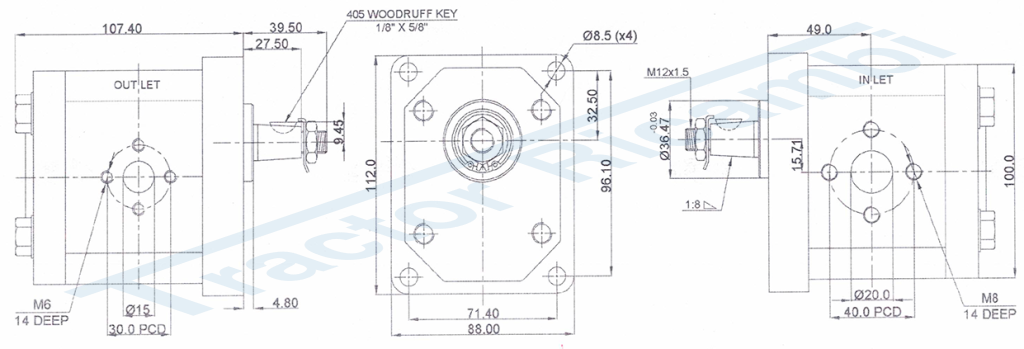

Data

Maximum pressure 250 Bar
Centering diameter 36.5 mm
Plessey original references A33X
Distance from the hole center 49 mm
Length 107.4 mm
Thread of the suction flange M6
Center distance of the suction flange 40 mm
Thread of the delivery flange M6
Center distance of the delivery flange 30 mm
Holes in the fixing flange 4x8.5 mm
Taper 1:8
Group 2
Swept volume 16.2 cc
Rotation Left
Maximum rotational speed 3000 rpm
net weight 4 kg

Spare parts

Spare Part Date Shop
guarnizione pompa idraulica
TR084335 guarnizione pompa idraulica
net weight 0.02 kg
link applicazioni
€ 0.96
-
+
