Art. TR095136

HighQuality_ORO
€ 92.23
-
+
Spare Parts

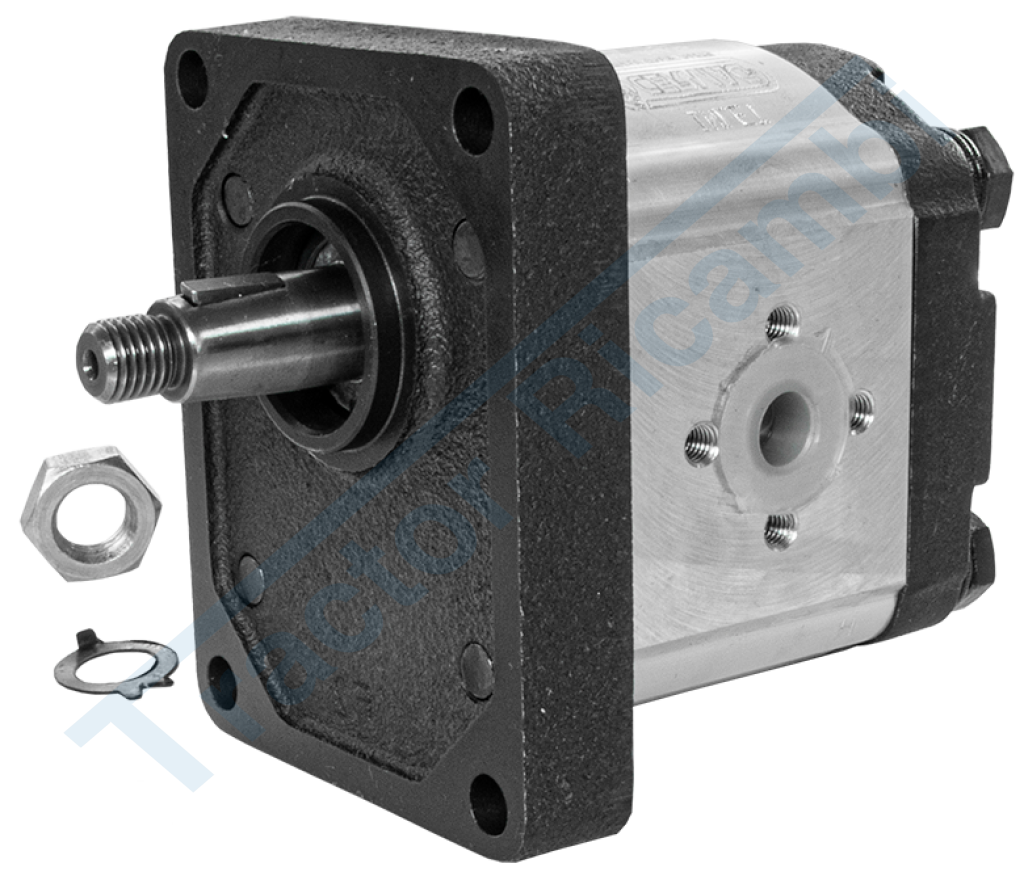

Gear pump GROUP 2

Taper 1:8
Swept volume 11 cc
Rotation Right

Gear pump GROUP 2
Gear pump GROUP 2

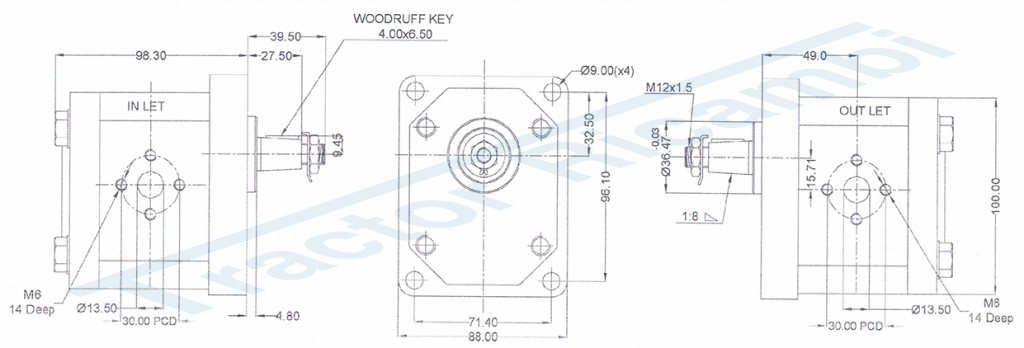

Data

Maximum pressure 250 Bar
Centering diameter 36.5 mm
Plessey original references C25X
Distance from the hole center 49 mm
Length 98.3 mm
Thread of the suction flange M6
Center distance of the suction flange 30 mm
Thread of the delivery flange M6
Center distance of the delivery flange 30 mm
Holes in the fixing flange 4x8.5 mm
Taper 1:8
Group 2
Swept volume 11 cc
Rotation Right
Maximum rotational speed 3500 rpm
net weight 3.8 kg

Spare parts

Spare Part Date Shop
Hydraulic pump gasket
TR084335 Hydraulic pump gasket
net weight 0.02 kg
link applicazioni
€ 0.96
