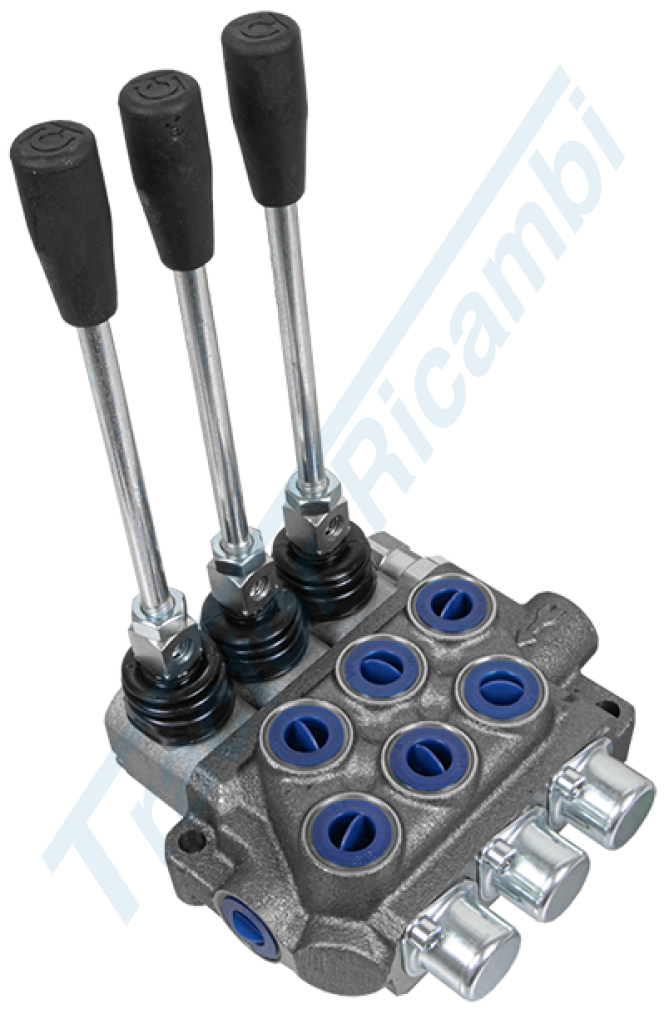

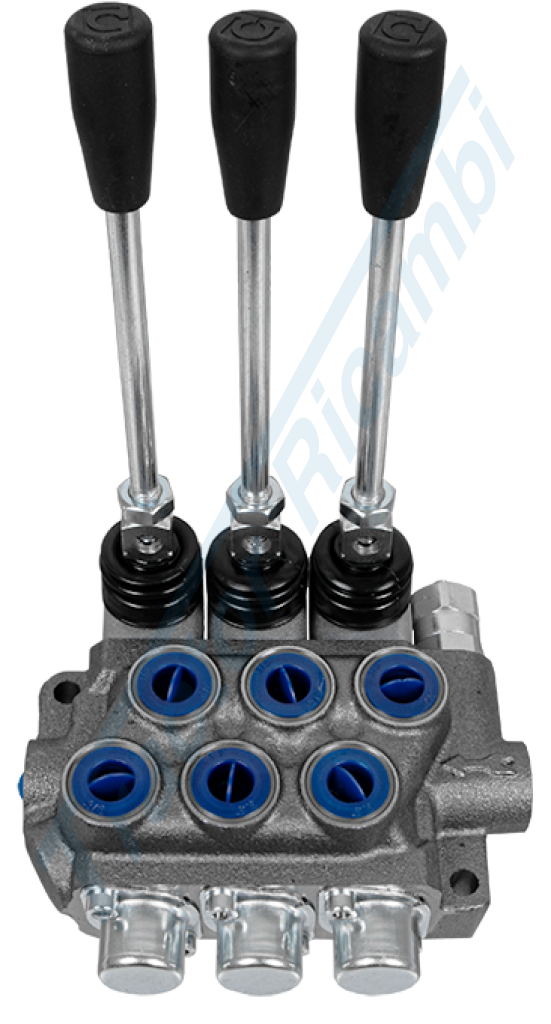

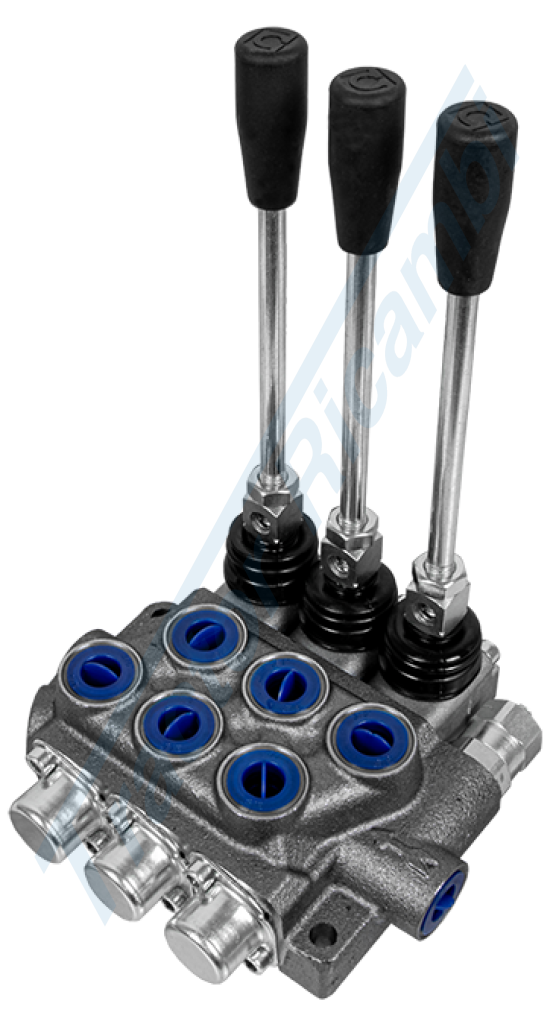

Monoblock valve 3 levers
Couplings3/8" GasCircuitDE - DE - DE
Data
ModelMD
Flow rate40 l/min
Couplings3/8" Gas
Circuit lever 1 - 2 - 3Double effect
Positions lever 1 - 2 - 30 - Fixed 1 - Spring retutn 2 - Spring return
Circuit diagram
Lever position layout
Carry overNO
Closed center type John DeereNO
net weight4.1 kg
Accessory
| Spare Part | Date | Shop |
|---|---|---|
 | modelMD - MDT - ML - DN layout  net weight0.16 kg | € 38.54 |
| modelMD - MDT - ML - DN layout  net weight0.177 kg | € 38.54 |
| modelMD - ML - DN layout  net weight0.106 kg | € 33.60 |
| modelMD - ML con appendice filettata layout net weight0.172 kg | € 73.62 |
| net weight0.439 kg | € 41.21 |
Spare parts
| Spare Part | Date | Shop |
|---|---|---|
| modelTUTTI net weight0.179 kg | € 53.23 |
| modelTUTTI height30 mm Top diameter15 - 18 mm Lower diameter27 - 33 mm net weight0.006 kg | € 4.48 |
| modelTUTTI net weight0.11 kg | € 3.50 |
| lever couplingM 10 center distance of holes37 (2 fori) mm applicable to distributorsMD - ML net weight0.183 kg | € 21.10 |
| modelMD net weight0.127 kg | € 29.95 |
| net weight0.042 kg | € 4.68 |
| lever couplingM 10 con appendice center distance of holes37 (2 fori) mm applicable to distributorsMD - ML net weight0.226 kg | € 28.42 |
