Art. TR081414

DANA
€ 187.65
-
+
Accessories Spare Parts

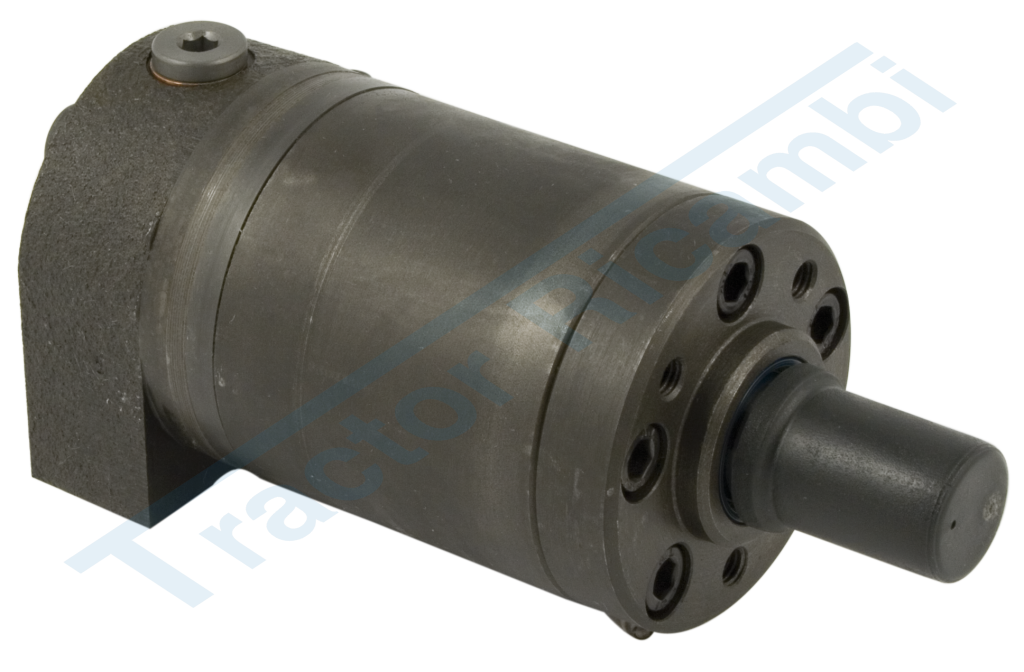

Hydraulic motor

Coupling Lateral
Displacement 12.5 cc

Hydraulic motor
Hydraulic motor

Data

Maximum flow rate 20 l/min
Maximum pressure 140 Bar
Maximum speed 1600 giri/min
Continuous maximum torque 1.6 daN
Intermittent maximum torque 2.2 daN
Continuous maximum power 2.4 Kw
Intermittent maximum power 3.2 Kw
Threading of the connection ports 3/8" Gas
Drain port thread 1/8" Gas
Length - L 106 mm
Type DANFOSS OMM
Coupling Lateral
Displacement 12.5 cc
Shaft Diameter 16 mm
net weight 2.21 kg

Accessory

Spare Part Date Shop
Sleeve for hydraulic motors
TR084364 Sleeve for hydraulic motors
External diameter 24 mm
Width - C 5 mm
Length - L 34 mm
Internal diameter 16 mm
Feather key 5 mm
net weight 0.45 kg
€ 22.15
-
+

Spare parts

Spare Part Date Shop
Gasket kit
TR083585 DANA Gasket kit
net weight 0.04 kg
€ 34.28
-
+
