Art. TR062040

MadeinItaly
€ 91.26
-
+
Accessories

Wheel jack with tilting wheel

Flow rate 400 kg

Wheel jack with tilting wheel
Wheel jack with tilting wheel

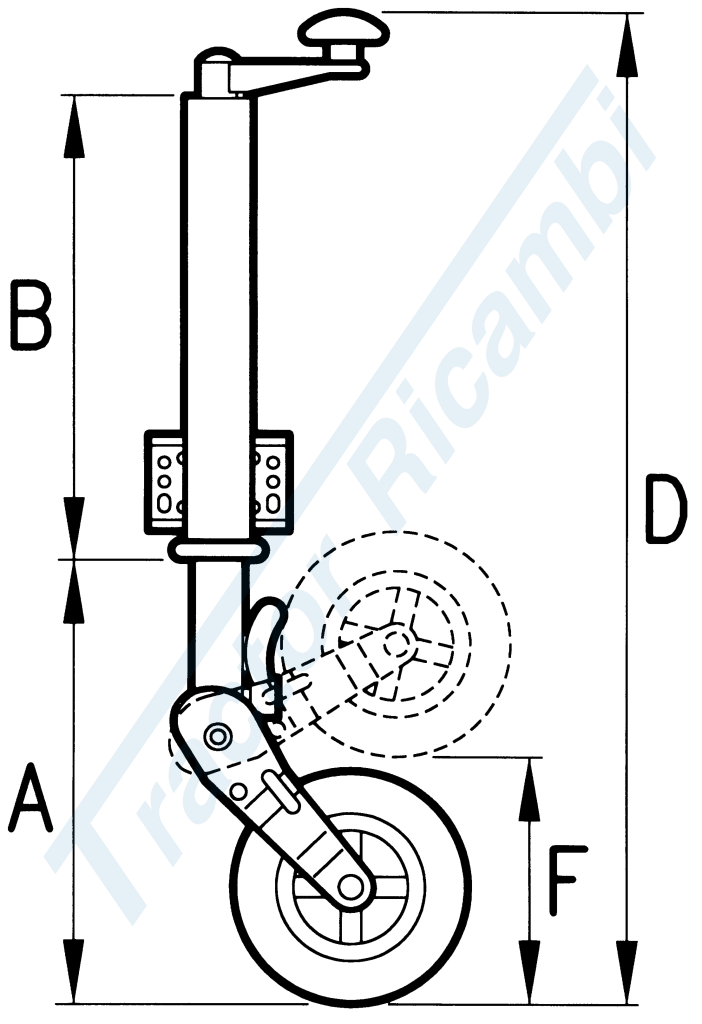

Data

Round 60 mm
Screw lengthening 250 mm
Height - A 340 mm
Height - B 460 mm
Height with the handle - D 900 mm
Height - F 270 mm
Rubber wheel 200x60 mm
Circle type Sheet metal
Flow rate 400 kg
net weight 9.6 kg

Accessory

Spare Part Date Shop
Adjustable clamp for clamping
TR062041 MadeinItaly Adjustable clamp for clamping
Diameter - A 48 mm
Center distance - B 105 mm
net weight 0.78 kg
€ 6.90
-
+
Adjustable clamp for clamping
TR062042 MadeinItaly Adjustable clamp for clamping
Tube diameter 60 mm
Fastening Weld
net weight 2.15 kg
€ 23.15
-
+
Adjustable clamp for clamping
TR062043 MadeinItaly Adjustable clamp for clamping
Tube diameter 60 mm
Fastening Screw
net weight 3.16 kg
€ 31.97
-
+
Adjustable clamp for clamping
TR063435 MadeinItaly Adjustable clamp for clamping
Diameter - A 35 mm
Center distance - B 105 mm
net weight 0.796 kg
€ 7.08
-
+
