Art. TR031117

Eurocardan
€ 815.57
-
+
Accessories Spare Parts

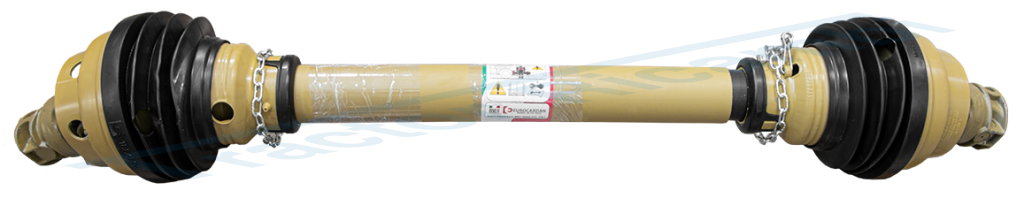

Wide angle PTO drive shaft

Category 4
Min length 1200 mm

Data

Coupling - Tractor side Wide angle 1"3/8 - Z.6
Coupling - Implement side Wide angle 1"3/8 - Z.6
Power transmitted at 540 rpm 35 CV
Power transmitted at 1000 rpm 55 CV
Power rating 540 rpm (10°) 33 kW - 44 CV
Torque 540 rpm (10°) 580 Nm
Power rating 1000 rpm (5°) 50 kW - 67 CV
Torque 1000 rpm (5°) 480 Nm
Length of closed cardan shaft 1200 mm
Category 4
Profile Triangular
net weight 24.7 kg

Correlated Articles

show related articles Special grease for cardan shafts - 400 ml
Description: "CE" Type approved The end-forks have a safety-quick coupling…

Accessory

Spare Part Date Shop
TR031744 Eurocardan Yoke with PULL COLLAR coupling
Figure reference 1
PTO cardan type EUROCARDAN Category 4
PTO cardan type WALTERSCHEID Type 2380
PTO cardan type EUROCARDAN PLUS Category 4
Coupling 1"3/8 - Z.21
Cross 27x75 - 27x91 mm
Sphere diameter 24 mm
net weight 1.95 kg
€ 119.24

Spare parts

Spare Part Date Shop
TR031240 Eurocardan Fork for external tube
Figure reference 4
PTO cardan type EUROCARDAN Category 4
PTO cardan type EUROCARDAN PLUS Category 4
Cross old type 27x75 - 24x91 mm
Cross 27x75 - 27x91 mm
Profile 43.5x3.4 mm
Sphere diameter 24 mm
net weight 1.49 kg
€ 78.54
-
+
TR031241 Eurocardan Protection
Figure reference 5
PTO cardan type EUROCARDAN Category 4
net weight 0.6 kg
€ 50.69
-
+
Wide angle joint EUROCARDAN
TR031265 Eurocardan Wide angle joint EUROCARDAN
Pipe profile Triangular 36x4.5 mm
Quick coupling profile 1"3/8 - Z.6
Cross 27x75 - 27x91 mm
PTO shaft category Category 4
net weight 9.18 kg
€ 399.23
-
+
Wide angle joint EUROCARDAN
TR031266 Eurocardan Wide angle joint EUROCARDAN
Pipe profile Triangular 43.5x3.4 mm
Quick coupling profile 1"3/8 - Z.6
Cross 27x75 - 27x91 mm
PTO shaft category Category 4
net weight 9.18 kg
€ 399.23
-
+
Universal safety guard without rings (CE approved)
TR031431 Eurocardan Universal safety guard without rings (CE approved)
PTO shaft length 1500 mm
Length of protection 1300 mm
Category WALTERSCHEID W2100 - W2200 - W2300
Standard category Category 1-4
net weight 1.43 kg
link applicazioni
€ 43.30
-
+
Rilsan pipe
TR031601 Eurocardan Rilsan pipe
Category 4
Length 1500 mm
Height - C 36 mm
Thickness - S 4.5 mm
net weight 5.39 kg
€ 149.24
-
+
Rilsan pipe
TR031602 Eurocardan Rilsan pipe
Category 4
Length 1500 mm
Height - B 43.5 mm
Thickness - S1 3.4 mm
net weight 4.31 kg
€ 62.82
-
+
TR031624 Eurocardan Fork for internal tube
Figure reference 4
PTO cardan type EUROCARDAN Category 4
PTO cardan type EUROCARDAN PLUS Category 4
Cross old type 27x75 - 24x91 mm
Cross 27x75 - 27x91 mm
Profile 36x4.5 mm
Sphere diameter 24 mm
net weight 2.1 kg
€ 78.54
-
+
TR031720 Eurocardan Yoke with PULL COLLAR coupling
Figure reference 1
PTO cardan type EUROCARDAN Category 4
PTO cardan type WALTERSCHEID Type 2380
PTO cardan type EUROCARDAN PLUS Category 4
Cross 27x75 - 27x91 mm
Coupling 1"3/8 - Z.6
Sphere diameter 24 mm
net weight 1.92 kg
€ 114.98
-
+
TR031721 Eurocardan Complete cross joint
Figure reference 2
PTO cardan type EUROCARDAN Category 4
PTO cardan type WALTERSCHEID Type 2380
Dimensions 27x75 - 27x91 mm
net weight 0.4 kg
€ 35.15
TR031722 Central assembly
Figure reference 3
PTO cardan type EUROCARDAN Category 4
PTO cardan type EUROCARDAN PLUS Category 4
Cross 27x75 - 27x91 mm
Sphere diameter 24 mm
net weight 4.94 kg
€ 169.31
-
+
