Art. TR026519

ARAG
€ 32.30
-
+

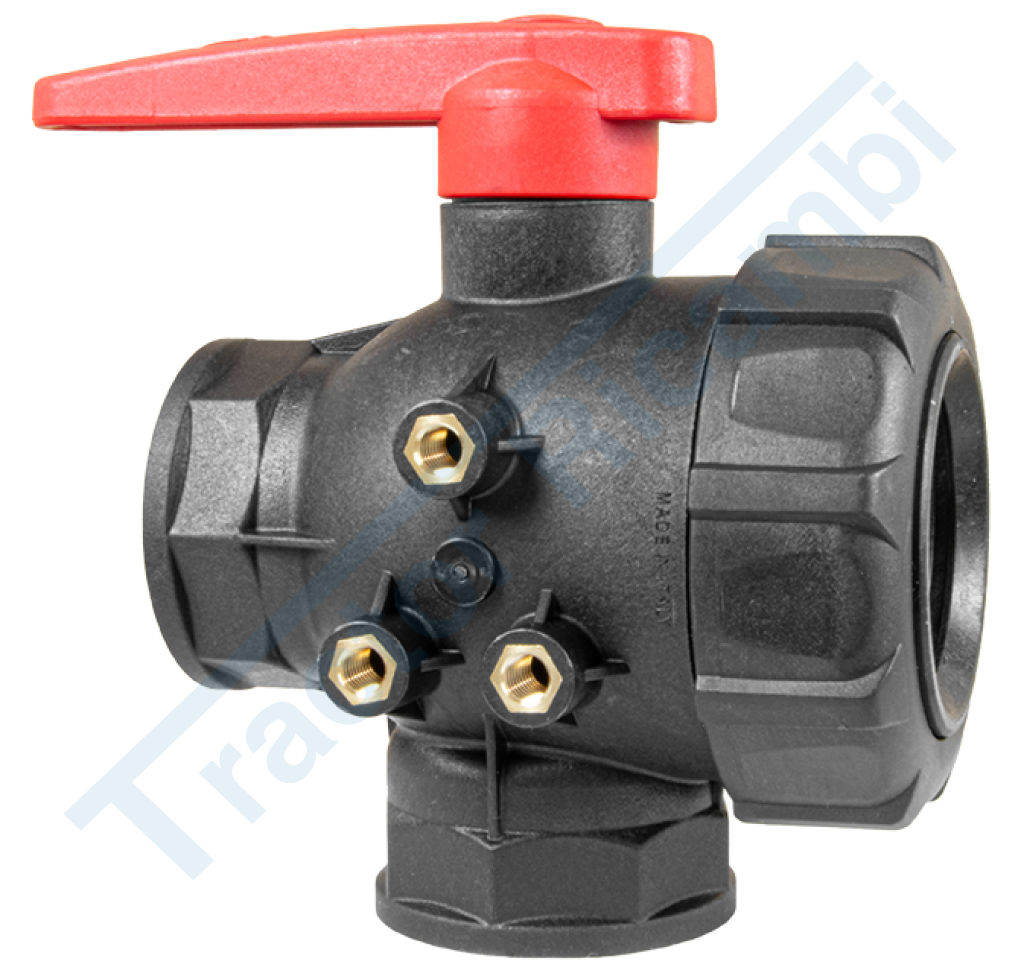

3-way ball valve standard

Union Internal thread 1"1/2 Gas

3-way ball valve standard
3-way ball valve standard

Data

Total length - T 128.5 mm
Internal diameter - DN 40 mm
Maximum pressure 10 Bar
Threading Internal - 1"1/2 Gas
Height - A 77 mm
Distance - B 61 mm
Distance - C 160 mm
Width - D 80 mm
Distance - E 48 mm
Distance - E1 50.5 mm
Height - H 143.5 mm
Thread length - L 28 mm
Thread length - P 31 mm
Center distance of the holes - X 27 mm
Center distance of the holes - Y 34 mm
Threading - Z M8
net weight 0.5 kg
