Art. TR026518

ARAG
€ 27.31
-
+

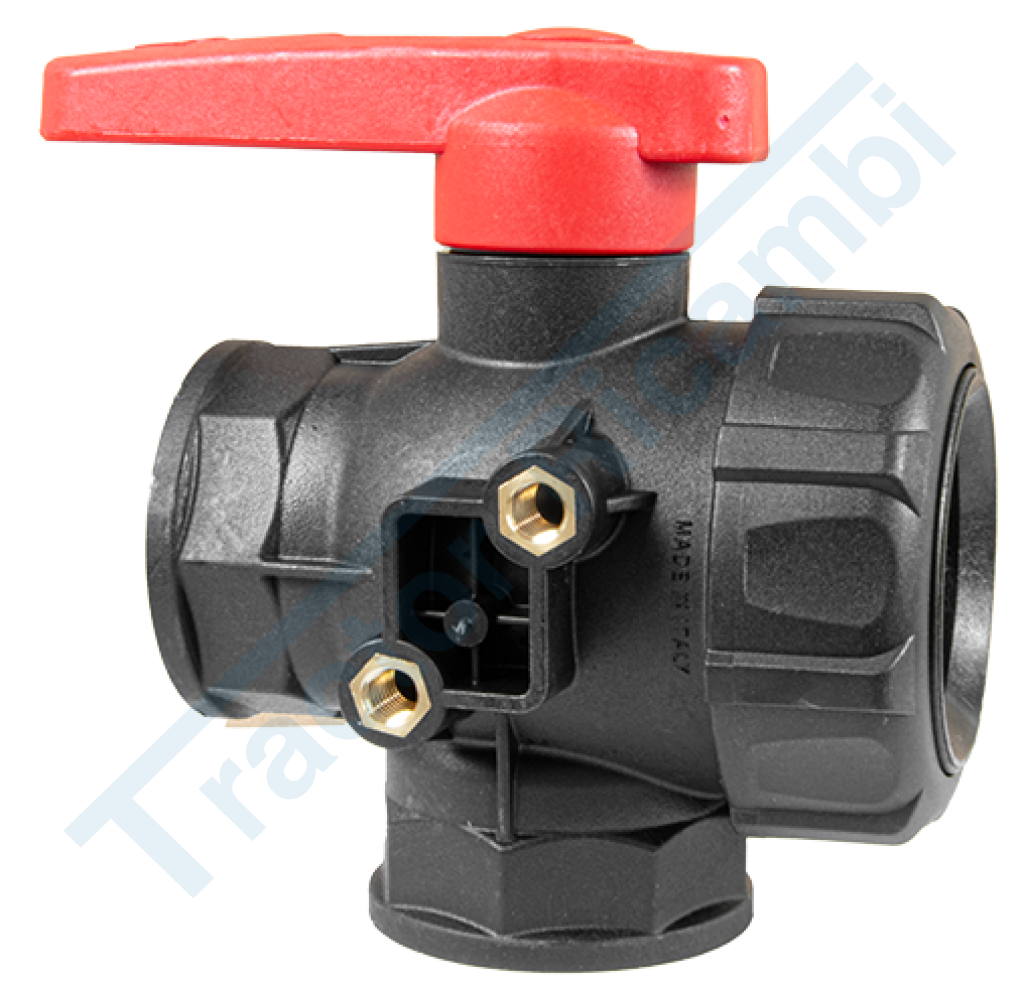

3-way ball valve standard

Union Internal thread 1"1/4 Gas

3-way ball valve standard
3-way ball valve standard

Data

Total length - T 108.5 mm
Internal diameter - DN 33 mm
Maximum pressure 10 Bar
Threading Internal - 1"1/4 Gas
Height - A 72 mm
Distance - B 50.5 mm
Distance - C 160 mm
Width - D 80 mm
Distance - E 40 mm
Distance - E1 43 mm
Height - H 125.5 mm
Thread length - L 25 mm
Thread length - P 29.5 mm
Center distance of the holes - X 20 mm
Center distance of the holes - Y 25 mm
Threading - Z M8
net weight 0.32 kg
